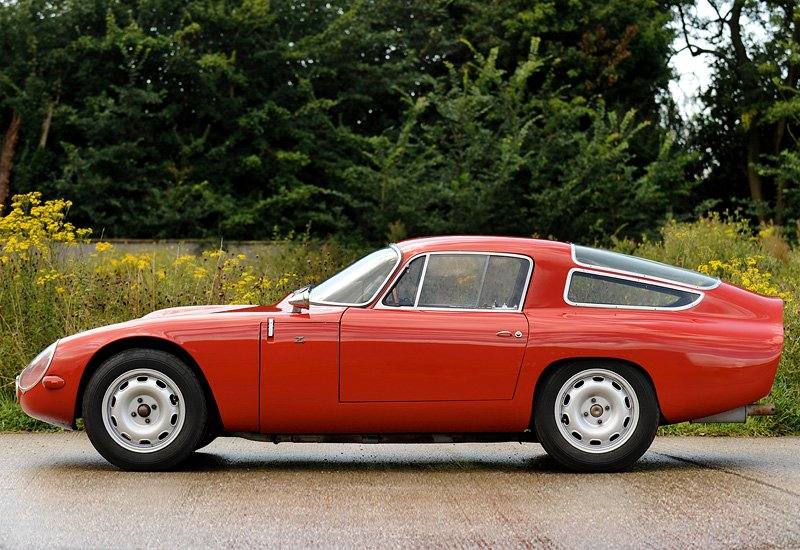

Alfa Romeo Giulia TZ
MODEL YEAR: 1963
Data Quality
B
Contributors
rover
Park in your virtuagarage
General
| Complete name of the car | Alfa Romeo Giulia TZ |
|---|---|
| Model year | 1963 |
| year (from) | 1963 |
| year (to) | 1965 |
| Total production | 112 |
| Quality of Data | B - Almost perfect |
Specifications
| Body style | Coupé |
|---|---|
| no.Doors | 2 |
| Wheelbase | 2200 mm |
| Lenght | 3950 mm |
| Width | 1510 mm |
| Height | 1200 mm |
| Curb Weight | 660 kg |
| Wheel Drive | Rear |
| Engine Location | Front |
| Chassis | Multi-Tubular Chassis-Frame |
| Seating capacity (number) | 2 |
| Track Tread (front) | 1300 mm |
| Track Tread (rear) | 1300 mm |
| Engine Alignment | Longitudinal |
Engine / Powertrain
| Cylinders Configuration | Straight/Inline Engine |
|---|---|
| Displacement | 1570 cc |
| Cylinders number | 4 |
| Valve Train | Double overhead camshaft DOHC |
| Bore | 78 mm |
| Stroke | 82 mm |
| Maximum Power (HP) | 98 hp |
| Power @ rounds per minute | 5500 rpm |
| Torque | 130 Nm |
| Torque @ r.p.m. | 2900 rpm |
| Compression Ratio | 9:1 |
| Coolant | Water |
| Engine Data accuracy | F |
Drivetrain & Suspension
| Suspensions Front | |
|---|---|
| Suspensions Rear | Coil springs, Double wishbones, Independent, Macpherson strut with Wishbone |
| Front Brakes | Disc |
| Rear Brakes | Disc |
| Transmission type | 5 speed manual |
| Clutch | Single dry-clutch friction disc |
| Front tyres dimensions | 155x15 |
| Rear tyres dimensions | 155x15 |
| Lubrication | wet-sump |
Performances
| Top Speed | 215 km/h |
|---|
