1968 Alfa Romeo Carabo Concept
MODEL YEAR: 1968
The Alfa Romeo 33 Bertone Carabo, also known simply as the Alfa Romeo 33 Carabo or Bertone Carabo, is a concept car created in 1968 by Alfa Romeo in collaboration with the design house Bertone.

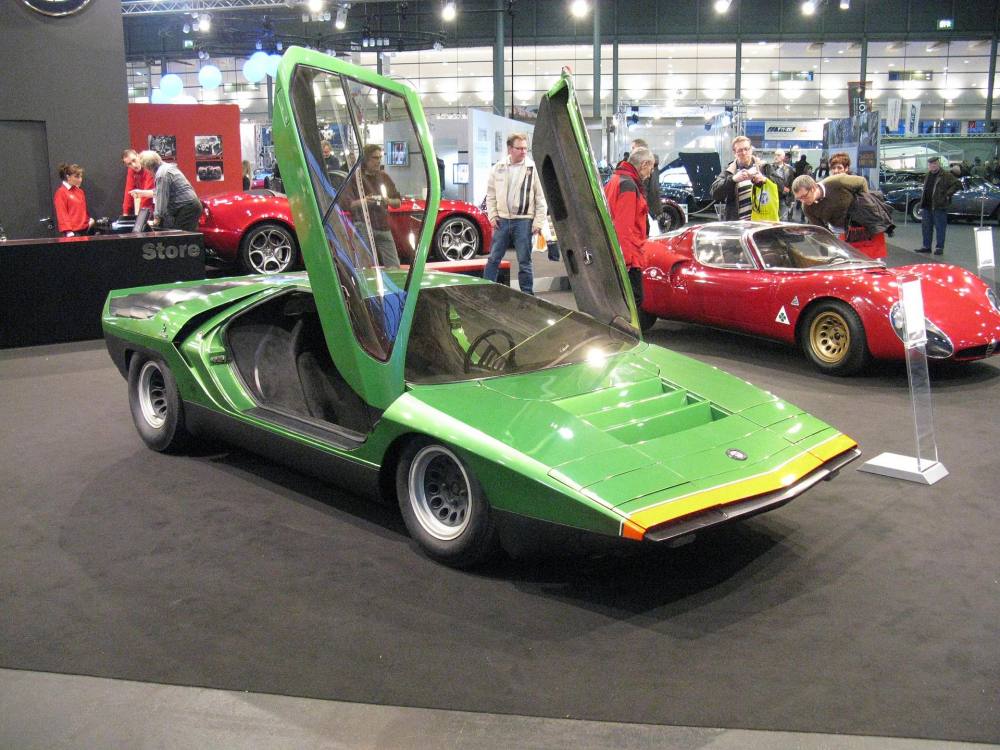

It was the first of six concept cars built on the chassis of the Alfa Romeo 33 Stradale, designed by renowned Italian car designers during the late 1960s and early 1970s. The name "Carabo" comes from a beetle species, Carabus auratus, known for its metallic, vibrant colors. The car's bold design, featuring luminescent green with orange accents and golden windows, along with its unique vertically-opening doors resembling beetle wings, made its debut at the Paris Auto Show in October 1968.
Though it remained a one-off model, the Carabo greatly influenced designer Marcello Gandini and Bertone, inspiring future iconic cars. Notably, its overall shape and the scissor doors were key design elements carried over to the Lamborghini Countach in 1974, which set a trend for many Lamborghini models to follow. The Carabo is currently preserved at the Alfa Romeo Historical Museum in Arese.
General
| Complete name of the car | 1968 Alfa Romeo Carabo Concept |
|---|---|
| Model year | 1968 |
| Quality of Data | B - Almost perfect |
Specifications
| Body style | Coupé |
|---|---|
| no.Doors | 2 |
| Wheelbase | 2350 mm |
| Lenght | 4170 mm |
| Width | 1780 mm |
| Height | 990 mm |
| Wheel Drive | Rear |
| Engine Location | Middle |
| Seating capacity (number) | 2 |
| Track Tread (front) | 1300 mm |
| Track Tread (rear) | 1360 mm |
| Engine Alignment | Longitudinal |
| Fuel capacity | 98 l |
Engine / Powertrain
| Kind of Engine | Naturally aspirated |
|---|---|
| Cylinders Configuration | V Engine |
| Displacement | 1995 cc |
| Cylinders number | 8 |
| Valve Train | Double overhead camshaft DOHC |
| Bore | 78 mm |
| Stroke | 52.2 mm |
| Maximum Power (HP) | 230 hp |
| Power (PS) | 233 PS |
| Power kW | 172 kW |
| Power @ rounds per minute | 8800 rpm |
| Torque | 183 Nm |
| Torque @ r.p.m. | 7000 rpm |
| Compression Ratio | 1:1 |
| Fuel | Petrol |
| Coolant | Water |
| Engine Data accuracy | D |
Drivetrain & Suspension
| Suspensions Front | |
|---|---|
| Suspensions Rear | |
| Front Brakes | Disc |
| Rear Brakes | Disc |
| Transmission type | 6 speed manual |
| Clutch | Single dry-clutch friction disc |
| Front tyres dimensions | 5.25Hx13 |
| Rear tyres dimensions | 6.00Lx13 |
| Fuel capacity | 98 l |
| Steering | Rack and pinion |
| Lubrication | dry-sump |
Performances
| Top Speed | 195 km/h |
|---|
