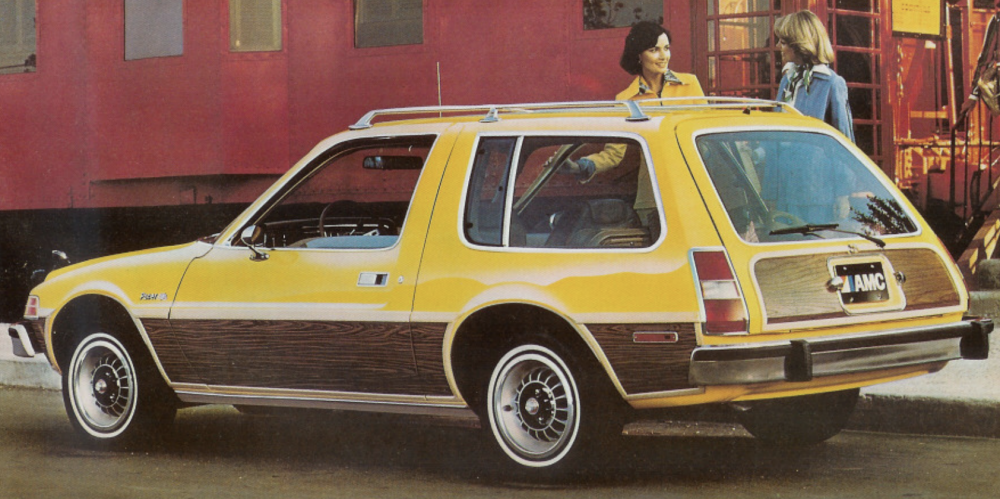

AMC Pacer Station Wagon 3.8
MODEL YEAR: 1977
Data Quality
E
Contributors
rover
Park in your virtuagarage
General
| Complete name of the car | AMC Pacer Station Wagon 3.8 |
|---|---|
| Model year | 1977 |
| Quality of Data | E - Most field Uncomplete |
Specifications
| Body style | Station Wagon / Estate |
|---|---|
| no.Doors | 3 |
| Wheelbase | 2540 mm |
| Lenght | 4437 mm |
| Width | 1956 mm |
| Height | 1351 mm |
| Wheel Drive | Missing info |
| Engine Location | Front |
| Seating capacity (number) | 4/5 |
| Track Tread (front) | 1562 mm |
| Track Tread (rear) | 1524 mm |
| Engine Alignment | Longitudinal |
| Fuel capacity | 83 l |
Engine / Powertrain
| Kind of Engine | Naturally aspirated |
|---|---|
| Cylinders Configuration | Straight/Inline Engine |
| Displacement | 3802 cc |
| Cylinders number | 6 |
| Valve Train | Overhead valves OHV |
| Bore | 95.25 mm |
| Stroke | 88.9 mm |
| Maximum Power (HP) | 88 hp |
| Power (PS) | 89 PS |
| Power kW | 66 kW |
| Power @ rounds per minute | 3400 rpm |
| Torque | 222 Nm |
| Torque @ r.p.m. | 1600 rpm |
| Compression Ratio | 8:1 |
| Fuel | Petrol |
| Coolant | Water |
Drivetrain & Suspension
| Suspensions Front | Independent, Wishbones, Macpherson strut with Wishbone |
|---|---|
| Suspensions Rear | Live axle, Macpherson strut with Wishbone |
| Front Brakes | Ventilated Disc |
| Rear Brakes | Drum |
| Front Brakes diameter | 274 mm |
| Transmission type | 4 speed manual |
| Wheel Size (front) | 5 x 14 |
| Wheel Size (rear) | 5 x 14 |
| Front tyres dimensions | d78 x 14 |
| Rear tyres dimensions | d78 x 14 |
| Fuel capacity | 83 l |
