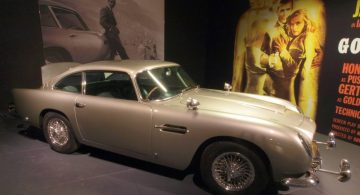

Generic image of Aston Martin DB5
1964 Aston Martin DB5 Vantage
MODEL YEAR: 1964
Data Quality
C
Contributors
No revisions
Park in your virtuagarage
General
| Complete name of the car | 1964 Aston Martin DB5 Vantage |
|---|---|
| Model year | 1964 |
| Total production | 65 |
| Quality of Data | C - Good |
Specifications
| Body style | Coupé |
|---|---|
| no.Doors | 2 |
| Wheelbase | 2489 mm |
| Lenght | 4572 mm |
| Width | 1676 mm |
| Height | 1346 mm |
| Curb Weight | 1465 kg |
| Wheel Drive | Rear |
| Engine Location | Front |
| Seating capacity (number) | 2+2 |
| Track Tread (front) | 1372 mm |
| Track Tread (rear) | 1359 mm |
| Engine Alignment | Longitudinal |
Engine / Powertrain
| Kind of Engine | Naturally aspirated |
|---|---|
| Cylinders Configuration | Straight/Inline Engine |
| Displacement | 3996 cc |
| Cylinders number | 6 |
| Valve Train | Double overhead camshaft DOHC |
| Bore | 96 mm |
| Stroke | 92 mm |
| Maximum Power (HP) | 325 hp |
| Power (PS) | 330 PS |
| Power kW | 242 kW |
| Power @ rounds per minute | 5500 rpm |
| Torque | 393 Nm |
| Torque @ r.p.m. | 4500 rpm |
| Compression Ratio | 9.4:1 |
| Fuel | Petrol |
| Coolant | Water |
Drivetrain & Suspension
| Suspensions Front | |
|---|---|
| Suspensions Rear | Helical coil springs, Live axle, parallel linkage (Watt's), Piston type shock absorbers |
| Front Brakes | Disc |
| Rear Brakes | Disc |
| Transmission type | 5 speed manual |
