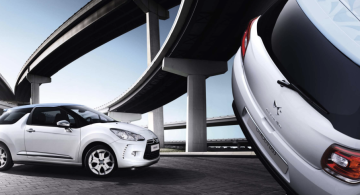

Generic image of Citroen DS3
2009 Citroën DS3 HDi 110 FAP
MODEL YEAR: 2009
Data Quality
E
Contributors
No revisions
Park in your virtuagarage
General
| Complete name of the car | 2009 Citroën DS3 HDi 110 FAP |
|---|---|
| Model year | 2009 |
| Quality of Data | E - Most field Uncomplete |
Specifications
| Body style | Hatchback |
|---|---|
| no.Doors | 3 |
| Wheelbase | 2452 mm |
| Lenght | 3948 mm |
| Width | 1715 mm |
| Height | 1458 mm |
| Curb Weight | 1165 kg |
| Wheel Drive | Front |
| Engine Location | Front |
| Seating capacity (number) | 4/5 |
| Track Tread (front) | 1465 mm |
| Track Tread (rear) | 1467 mm |
| Engine Alignment | Transverse |
| Fuel capacity | 48 l |
Engine / Powertrain
| Kind of Engine | Turbocharged |
|---|---|
| Cylinders Configuration | Straight/Inline Engine |
| Displacement | 1560 cc |
| Cylinders number | 4 |
| Valve Train | Double overhead camshaft DOHC |
| Bore | 75 mm |
| Stroke | 88.3 mm |
| Maximum Power (HP) | 110 hp |
| Power (PS) | 112 PS |
| Power kW | 82 kW |
| Power @ rounds per minute | 3600 rpm |
| Torque | 285 Nm |
| Torque @ r.p.m. | 1750 rpm |
| Compression Ratio | 16:1 |
| Fuel | Diesel |
| Coolant | Water |
Drivetrain & Suspension
| Suspensions Front | Independent, Macpherson strut, Macpherson strut with Wishbone |
|---|---|
| Suspensions Rear | Macpherson strut with Wishbone |
| Front Brakes | Ventilated Disc |
| Transmission type | 6 speed manual |
| Front tyres dimensions | 205/45 r 17 |
| Rear tyres dimensions | 205/45 r 17 |
| Fuel capacity | 48 l |
Cars mounting the same engine (produced by Citroën)
2010 Citroën DS4 HDi 110 DPF 2010 Citroën DS4 HDi 110 DPF EGS 2011 Citroën DS5 eHDi 110 FAPCars mounting the same engine (other makes)
2010 Peugeot 508 1.6 HDi FAP 1122010 Peugeot 508 SW 1.6 HDi FAP 112
