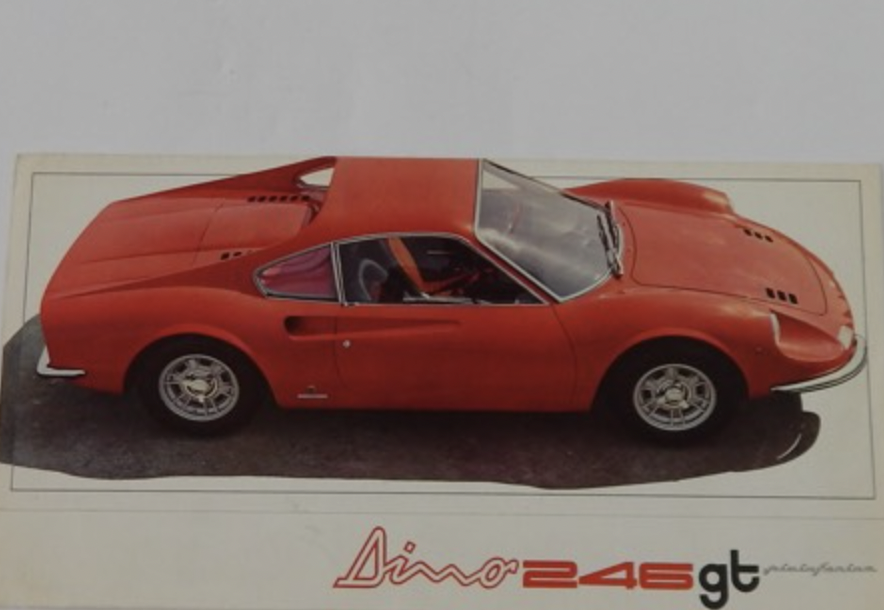

1969 Ferrari Dino 246 GT
MODEL YEAR: 1969
Data Quality
Contributors
No revisions
Park in your virtuagarage
General
| Complete name of the car | 1969 Ferrari Dino 246 GT |
|---|---|
| Model year | 1969 |
Specifications
| Body style | Coupé |
|---|---|
| no.Doors | 2 |
| Wheelbase | 2340 mm |
| Lenght | 4235 mm |
| Width | 1703 mm |
| Height | 1143 mm |
| Curb Weight | 1080 kg |
| Wheel Drive | Missing info |
| Engine Location | Middle |
| Seating capacity (number) | 2 |
| Track Tread (front) | 1372 mm |
| Track Tread (rear) | 1346 mm |
| Engine Alignment | Transverse |
| Fuel capacity | 65 l |
Engine / Powertrain
| Kind of Engine | Naturally aspirated |
|---|---|
| Cylinders Configuration | V Engine |
| Displacement | 2419 cc |
| Cylinders number | 6 |
| Cylinders angle | 65 |
| Valve Train | Double overhead camshaft DOHC |
| Bore | 92.5 mm |
| Stroke | 60 mm |
| Maximum Power (HP) | 192 hp |
| Power (PS) | 195 PS |
| Power kW | 143 kW |
| Power @ rounds per minute | 7600 rpm |
| Torque | 225 Nm |
| Torque @ r.p.m. | 5500 rpm |
| Compression Ratio | 9:1 |
| Fuel | Petrol |
| Coolant | Water |
Drivetrain & Suspension
| Suspensions Front | Independent, Double wishbones, Macpherson strut with Wishbone |
|---|---|
| Suspensions Rear | Independent, Double wishbones, Macpherson strut with Wishbone |
| Front Brakes | Disc |
| Front Brakes diameter | 270 mm |
| Rear Brakes diameter | 254 mm |
| Transmission type | 5 speed manual |
| Wheel Size (front) | 6½ x 14 |
| Wheel Size (rear) | 6½ x 14 |
| Front tyres dimensions | 205/70 vr 14 |
| Rear tyres dimensions | 205/70 vr 14 |
| Fuel capacity | 65 l |
Performances
| Top Speed | 235 km/h |
|---|---|
| Acceleration 0-60 mp/h | 7.1 |
| Standing quarter mile | 15.4 s |
