Fiat S76 300HP Record
MODEL YEAR: 1911
Data Quality
Contributors
No revisions
Park in your virtuagarage

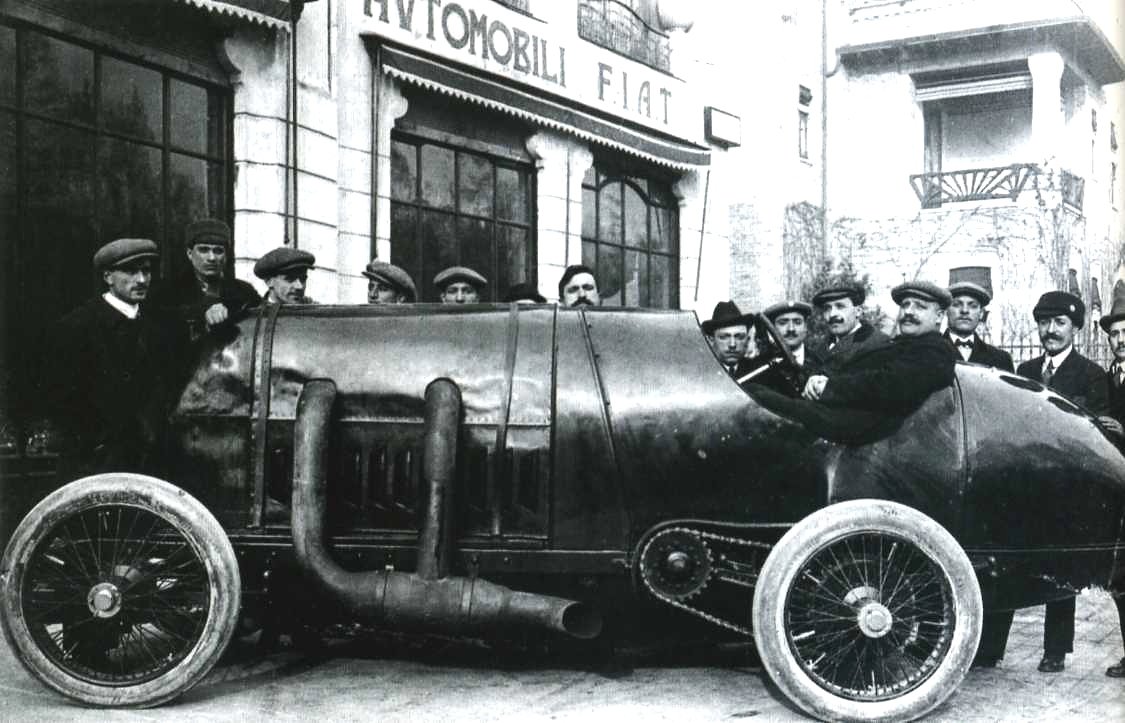

The Fiat S76, also known as "The Beast of Turin," was specially built as a one-off vehicle to take the world land speed record from the Blitzen-Benz, which held the record at the time. Named for its massive engine, which had a capacity of 28,353 cc and produced 290 bhp, the S76 aimed to dominate the speed trials. In 1911, the S76 was sent to Britain, where it was tested for the first time at Brooklands.
General
| Complete name of the car | Fiat S76 300HP Record |
|---|---|
| Model year | 1911 |
| year (from) | 1911 |
| year (to) | 1911 |
| Total production | 1 |
Specifications
| Body style | Open-wheel car |
|---|---|
| no.Doors | 2 |
| Wheelbase | 2750 mm |
| Lenght | 3750 mm |
| Engine Location | Front |
| Seating capacity (number) | 2 |
| Track Tread (front) | 1300 mm |
| Track Tread (rear) | 1300 mm |
Engine / Powertrain
| Cylinders Configuration | Straight/Inline Engine |
|---|---|
| Displacement | 28353 cc |
| Cylinders number | 4 |
| Valve Train | Overhead valves OHV |
| Maximum Power (HP) | 290 hp |
| Power @ rounds per minute | 1900 rpm |
| Fuel | Petrol |
| Coolant | Water |
| Engine Data accuracy | C |
Drivetrain & Suspension
| Suspensions Front | Semi-elliptic leaf springs, Solid Axle |
|---|---|
| Suspensions Rear | Semi-elliptic leaf springs, Solid Axle |
| Rear Brakes | mechanical band type on rear wheels |
| Transmission type | 4 speed manual |
| Clutch | Multiple plate dry-clutch |
| Front tyres dimensions | 895x135 |
| Rear tyres dimensions | 895x135 |
| Steering | Worm and sector |
Performances
| Top Speed | 290 km/h |
|---|
