Fiat SB4 Eldridge Mefistofele
MODEL YEAR: 1924
Also known as: Fiat Mefistofele Fiat Mephistopheles
Data Quality
E
Contributors
rover
Park in your virtuagarage

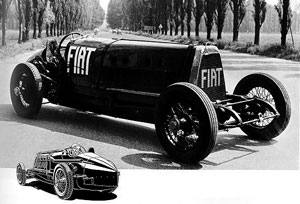

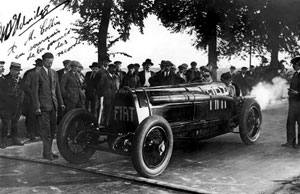

English racing driver EAD Eldridge acquired a 1908 SB 4, into which he installed a Fiat A.12 bis World War I aero-engine, capable of producing a maximum power output of 320 bhp. The result was a powerful, record-breaking car with suitable modifications. On July 12, 1924, in Arpajon, France, Eldridge set a new world land speed record, reaching a speed of 234.980 kph.
General
| Complete name of the car | Fiat SB4 Eldridge Mefistofele |
|---|---|
| Model year | 1924 |
| Total production | 1 |
| Quality of Data | E - Most field Uncomplete |
Specifications
| Body style | Open-wheel car |
|---|---|
| Wheelbase | 3450 mm |
| Lenght | 5091 mm |
| Width | 1850 mm |
| Height | 1400 mm |
| Curb Weight | 1780 kg |
| Wheel Drive | Rear |
| Engine Location | Front |
| Engine Alignment | Longitudinal |
Engine / Powertrain
| Cylinders Configuration | Straight/Inline Engine |
|---|---|
| Displacement | 21706 cc |
| Cylinders number | 6 |
| Valve Train | Overhead valves OHV |
| Bore | 160 mm |
| Stroke | 180 mm |
| Maximum Power (HP) | 320 hp |
| Compression Ratio | 4.8:1 |
| Fuel | Petrol |
| Engine Data accuracy | C |
Drivetrain & Suspension
| Suspensions Front | Solid Axle |
|---|---|
| Rear Brakes | Mechanical |
| Transmission type | 4 speed manual |
| Clutch | Multiple plate dry-clutch |
| Front tyres dimensions | 600-21 33x6. |
| Rear tyres dimensions | 600-21 33x6. |
| Steering | Worm and sector |
Performances
| Top Speed | 234 km/h |
|---|
