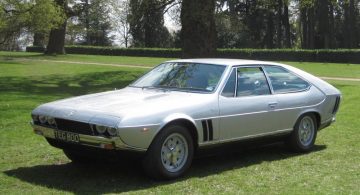

Generic image of Iso Rivolta Lele
1969 Iso Lele Automatic
MODEL YEAR: 1969
Data Quality
E
Contributors
No revisions
Park in your virtuagarage
General
| Complete name of the car | 1969 Iso Lele Automatic |
|---|---|
| Model year | 1969 |
| Quality of Data | E - Most field Uncomplete |
Specifications
| Body style | Coupé |
|---|---|
| no.Doors | 2 |
| Wheelbase | 2700 mm |
| Lenght | 4650 mm |
| Width | 1750 mm |
| Height | 1350 mm |
| Curb Weight | 1681 kg |
| Wheel Drive | Rear |
| Engine Location | Front |
| Seating capacity (number) | 2+2 |
| Track Tread (front) | 1448 mm |
| Track Tread (rear) | 1448 mm |
| Weight distribution (FRONT) | 55 % |
| Engine Alignment | Longitudinal |
| Fuel capacity | 100 l |
Engine / Powertrain
| Kind of Engine | Naturally aspirated |
|---|---|
| Cylinders Configuration | V Engine |
| Displacement | 5766 cc |
| Cylinders number | 8 |
| Cylinders angle | 90 |
| Valve Train | Overhead valves OHV |
| Bore | 101.6 mm |
| Stroke | 88.9 mm |
| Maximum Power (HP) | 325 hp |
| Power (PS) | 330 PS |
| Power kW | 242 kW |
| Power @ rounds per minute | 5800 rpm |
| Torque | 475 Nm |
| Torque @ r.p.m. | 3800 rpm |
| Compression Ratio | 8.6:1 |
| Fuel | Petrol |
| Coolant | Water |
Drivetrain & Suspension
| Suspensions Front | |
|---|---|
| Suspensions Rear | |
| Front Brakes | Disc |
| Transmission type | 3 speed automatic |
| Wheel Size (front) | 7l x 15 |
| Wheel Size (rear) | 7l x 15 |
| Front tyres dimensions | 205 vr 15 |
| Rear tyres dimensions | 205 vr 15 |
| Fuel capacity | 100 l |
Cars mounting the same engine (produced by Iso)
Iso Fidia
