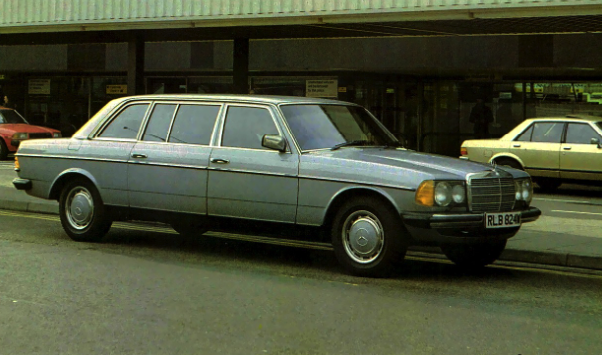

1977 Mercedes-Benz 300D LWB V 123
MODEL YEAR: 1977
Also known as: Mercedes-Benz 300D Limousine V 123
Data Quality
C
Contributors
No revisions
Park in your virtuagarage
General
| Complete name of the car | 1977 Mercedes-Benz 300D LWB V 123 |
|---|---|
| Model year | 1977 |
| year (from) | 1977 |
| year (to) | 1985 |
| Quality of Data | C - Good |
Specifications
| Body style | Limousine |
|---|---|
| no.Doors | 4 |
| Wheelbase | 3420 mm |
| Lenght | 5343 mm |
| Width | 1786 mm |
| Height | 1480 mm |
| Curb Weight | 1630 kg |
| Wheel Drive | Rear |
| Engine Location | Front |
| Seating capacity (number) | 7/8 |
| Track Tread (front) | 1477 mm |
| Track Tread (rear) | 1430 mm |
| Engine Alignment | Longitudinal |
| Luggage capacity (min) | 501 l |
| Fuel capacity | 65 l |
Engine / Powertrain
| Kind of Engine | Naturally aspirated |
|---|---|
| Cylinders Configuration | Straight/Inline Engine |
| Displacement | 2998 cc |
| Cylinders number | 5 |
| Valve Train | Single overhead camshaft SOHC |
| Bore | 90.9 mm |
| Stroke | 92.4 mm |
| Maximum Power (HP) | 87 hp |
| Power (PS) | 88 PS |
| Power kW | 65 kW |
| Power @ rounds per minute | 4400 rpm |
| Torque | 172 Nm |
| Torque @ r.p.m. | 2400 rpm |
| Compression Ratio | 21:1 |
| Fuel | Diesel |
| Coolant | Water |
Drivetrain & Suspension
| Suspensions Front | Coil springs, Telescopic hydraulic double-acting shock-absorbers |
|---|---|
| Suspensions Rear | Coil springs, Hydro Pneumatic Springs, Coaxially mounted telescopic hydraulic double-acting shock-absorbers, Diagonal trailing radius arms with upper and lower links |
| Front Brakes | Disc |
| Transmission type | 4 speed manual |
| Fuel capacity | 65 l |
Performances
| Top Speed | 150 km/h |
|---|
