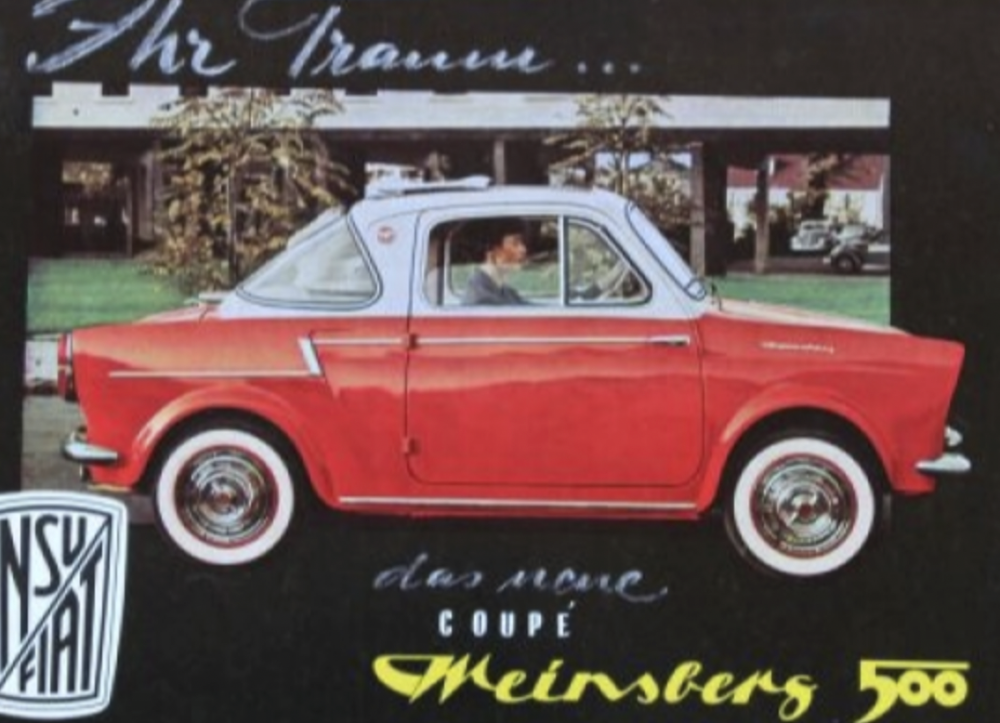

NSU-Fiat Weinsberg 500 (1960)
MODEL YEAR: 1960
Data Quality
D
Contributors
rover
Park in your virtuagarage
General
| Complete name of the car | NSU-Fiat Weinsberg 500 (1960) |
|---|---|
| Model year | 1960 |
| Quality of Data | D - Average |
Specifications
| Body style | Coupé |
|---|---|
| no.Doors | 2 |
| Wheelbase | 1840 mm |
| Lenght | 3085 mm |
| Width | 1350 mm |
| Height | 1310 mm |
| Curb Weight | 485 kg |
| Wheel Drive | Rear |
| Engine Location | Rear |
| Seating capacity (number) | 4 |
| Track Tread (front) | 1121 mm |
| Track Tread (rear) | 1135 mm |
| Engine Alignment | Longitudinal |
| Fuel capacity | 21 l |
Engine / Powertrain
| Kind of Engine | Naturally aspirated |
|---|---|
| Cylinders Configuration | Straight/Inline Engine |
| Displacement | 479 cc |
| Cylinders number | 2 |
| Valve Train | Overhead valves OHV |
| Bore | 66 mm |
| Stroke | 70 mm |
| Maximum Power (HP) | 15 hp |
| Power @ rounds per minute | 4000 rpm |
| Torque | 27 Nm |
| Torque @ r.p.m. | 2500 rpm |
| Compression Ratio | 6.8:1 |
| Fuel | Petrol |
| Coolant | Air |
Drivetrain & Suspension
| Front Brakes | Drum |
|---|---|
| Rear Brakes | Drum |
| Transmission type | 4 speed manual |
| Front tyres dimensions | 4.40-12 |
| Rear tyres dimensions | 4.40-12 |
| Fuel capacity | 21 l |
Performances
| Top Speed | 95 km/h |
|---|
