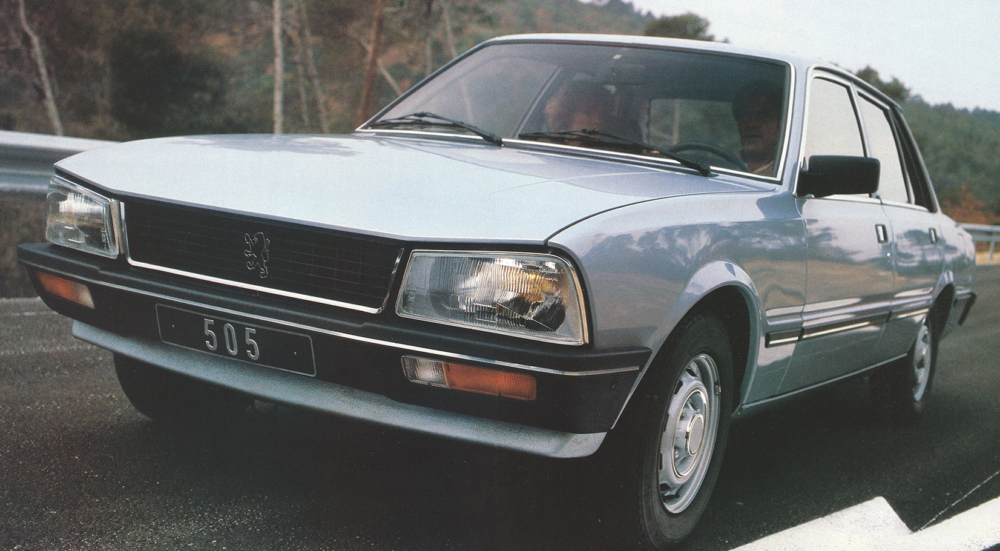

Peugeot 505

Engines

18

Id.Engine	2304 cc	2498 cc	2498 cc
Kind of Engine	Turbocharged		Turbocharged
Identificative engine
Cylinders Configuration	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine
Displacement	2304 cc	2498 cc	2498 cc
Cylinders number	4	4	4
Fuel	Diesel	Diesel	Diesel
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque	180 N-m	148 N-m	206 N-m
Torque @ r.p.m.	2000 rpm	2000 rpm	2000 rpm
Cylinders angle
Maximum Power (HP)	80 hp		95 hp
Power (PS)	81 ps	75 ps	96 ps
Power kW	60 kW		71 kW
Power @ rounds per minute	4150 rpm	4500 rpm	4150 rpm
Bore	94 mm		94 mm
Stroke	83 mm		90 mm
Valve Train	Overhead valves OHV		Overhead valves OHV
Compression Ratio	21:1		21:1
Engine block material
Cylinder head material
Fuel System	bosch ve diesel injection pump		bosch diesel injection
Coolant	Water		Water
Engine Data accuracy
	505 SRD Turbo 1 505 GLD Break 1	505 GLD Break 1 505 GRD Break 1 505 SRD Break Automatic 1 505 Break SXD 2.5 1 505 Familiare SXD 2.5 1	505 GTD Turbo 1

Id.Engine	1796 cc	1796 cc	1971 cc	1971 cc	1971 cc	1995 cc	2155 cc	2155 cc	2156 cc	2156 cc	2165 cc	2165 cc	2165 cc	2849 cc	2849 cc
Kind of Engine	Naturally aspirated	Naturally aspirated	Naturally aspirated	Naturally aspirated	Naturally aspirated	Naturally aspirated	Turbocharged	Turbocharged	Turbocharged	Turbocharged	Naturally aspirated	Naturally aspirated	Naturally aspirated	Naturally aspirated	Naturally aspirated
Identificative engine	xm 7a								N9 TE	N9 TE		ZDJL		ZN3J
Cylinders Configuration	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	Straight/Inline Engine	V Engine	V Engine
Displacement	1796 cc	1796 cc	1971 cc	1971 cc	1971 cc	1995 cc	2155 cc	2155 cc	2156 cc	2156 cc	2165 cc	2165 cc	2165 cc	2849 cc	2849 cc
Cylinders number	4	4	4	4	4	4	4	4	4	4	4	4	4	6	6
Fuel	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque	144 N-m	142 N-m	158 N-m	161 N-m	161 N-m	168 N-m	232 N-m	240 N-m	244 N-m	260 N-m	186 N-m	178 N-m	185 N-m	235 N-m	235 N-m
Torque @ r.p.m.	2750 rpm	2500 rpm	3000 rpm	3000 rpm	3000 rpm	4000 rpm	3000 rpm	3000 rpm	2750 rpm	3000 rpm	3500 rpm	3500 rpm	4250 rpm	4250 rpm	4250 rpm
Cylinders angle
Maximum Power (HP)	83 hp	79 hp	95 hp	96 hp	100 hp	110 hp	150 hp	160 hp	148 hp	165 hp	117 hp	118 hp	130 hp	168 hp	170 hp
Power (PS)		80 ps	96 ps	97 ps	101 ps	112 ps	152 ps	162 ps	150 ps	167 ps	119 ps	120 ps	132 ps	170 ps	172 ps
Power kW	62 kW	59 kW	71 kW	72 kW	75 kW	82 kW	112 kW	119 kW	110 kW	123 kW	87 kW	88 kW	97 kW	125 kW	127 kW
Power @ rounds per minute	5250 rpm	5500 rpm	5200 rpm	5200 rpm	5000 rpm	5250 rpm	5200 rpm	5200 rpm	5000 rpm	5200 rpm	5250 rpm	5000 rpm	5750 rpm	5600 rpm	5600 rpm
Bore	84 mm	84 mm	88 mm	88 mm	88 mm	88 mm	91.7 mm	91.7 mm	91.7 mm	91.7 mm	88 mm	88 mm	88 mm	91 mm	91 mm
Stroke	81 mm	81 mm	81 mm	81 mm	81 mm	82 mm	81.58 mm	81.58 mm	81.6 mm	81.6 mm	89 mm	89 mm	89 mm	73 mm	73 mm
Valve Train	Overhead valves OHV	Single overhead camshaft SOHC	Overhead valves OHV	Overhead valves OHV	Overhead valves OHV	Single overhead camshaft SOHC	Single overhead camshaft SOHC	Single overhead camshaft SOHC	Single overhead camshaft SOHC	Single overhead camshaft SOHC	Single overhead camshaft SOHC	Single overhead camshaft SOHC	Single overhead camshaft SOHC	Single overhead camshaft SOHC	Single overhead camshaft SOHC
Compression Ratio	8.8:1	8.8:1	8.8:1	8.8:1	8.8:1	9.2:1	7.5:1	8:1	8:1	8:1	9.2:1	8.8:1	9.8:1	10:1	10:1
Engine block material
Cylinder head material
Fuel System	1 solex 32/34 cisac carburettor	1 carburettor	1 solex 32/35 tmimat carburettor	1 solex 32-35 tmima carburettor	1 zenith carburettor	bosch fuel injection	bosch l-jet fuel injection	bosch l-jet fuel injection	bosch l-jetronic fuel injection	bosch l-jetronic fuel injection	bosch k-jet fuel injection	bosch l-jetronic fuel injection	bosch l-jet fuel injection	bosch lh-jetronic fuel injection	bosch lh2-jet fuel injection
Coolant	Water	Water	Water	Water	Water	Water	Water	Water	Water	Water	Water	Water	Water	Water	other
Engine Data accuracy
	505 1.8 1	505 GL 1	505 GL Break Automatic 1 505 GL Break 1	505 GL 1 505 GR Estate 1	505 SR 1	505 STi 1	505 GTi Turbo 1	505 Turbo Injection 1	505 Turbo 1	505 Turbo 1	505 STi 1	505 Break SX 2.2 Injection 1 505 Familiare SX 2.2 Injection 1	505 GTi 1	505 V6 Automatic 1	505 V6 1

Car body variants

2 SED SWG

Variants	#SED	#SED	#SED	#SED	#SED	#SED	#SED	#SED	#SED	#SED	#SED	#SWG	#SWG	#SWG
Body style	Sedan	Sedan	Sedan	Sedan	Sedan	Sedan	Sedan	Sedan	Sedan	Sedan	Sedan	Station Wagon / Estate	Station Wagon / Estate	Station Wagon / Estate
no.Doors
Wheelbase	2743 mm	2740 mm	2745 mm	2740 mm	2743 mm	2740 mm	2740 mm	2740 mm	2745 mm	2740 mm	2745 mm	2900 mm	2900 mm	2900 mm
Lenght	4579 mm	4580 mm	4580 mm	4580 mm	4580 mm	4580 mm	4580 mm	4580 mm	4580 mm	4580 mm	4580 mm	4900 mm	4900 mm	4901 mm
Width	1726 mm	1720 mm	1735 mm	1720 mm	1720 mm	1720 mm	1720 mm	1720 mm	1735 mm	1720 mm	1735 mm	1730 mm	1730 mm	1730 mm
Height		1424 mm	1440 mm	1450 mm	1450 mm	1450 mm	1432 mm	1420 mm	1440 mm	1424 mm	1440 mm	1540 mm	1540 mm	1540 mm
Curb Weight
Wheel Drive
Engine Location	Front	Front	Front	Front	Front	Front	Front	Front	Front	Front	Front	Front	Front	Front
Chassis
Seating capacity (number)
Track Tread (front)	1461 mm	1492 mm	1460 mm	1460 mm	1461 mm	1460 mm	1481 mm	1490 mm	1490 mm		1490 mm	1470 mm	1435 mm	1481 mm
Track Tread (rear)	1438 mm	1458 mm	1440 mm	1430 mm	1430 mm	1430 mm	1448 mm	1460 mm	1455 mm		1460 mm	1440 mm	1461 mm	1450 mm
Luggage capacity (min)
Luggage capacity (max)
Weight distribution (FRONT)
Engine Alignment	Longitudinal		Longitudinal	Longitudinal	Longitudinal		Longitudinal		Longitudinal		Longitudinal	Longitudinal	Longitudinal	Longitudinal
Drag Coefficient
Equipment
	505 GL	505 Turbo Injection	505 1.8	505 STi 505 GL 505 SRD Turbo	505 STi	505 SR 505 GTD Turbo	505 GTi	505 GTi Turbo	505 V6 Automatic	505 V6	505 Turbo 505 Turbo	505 GLD Break 505 GRD Break 505 SRD Break Automatic 505 GLD Break 505 GL Break Automatic 505 GL Break	505 GR Estate	505 Break SXD 2.5 505 Break SX 2.2 Injection 505 Familiare SXD 2.5 505 Familiare SX 2.2 Injection
