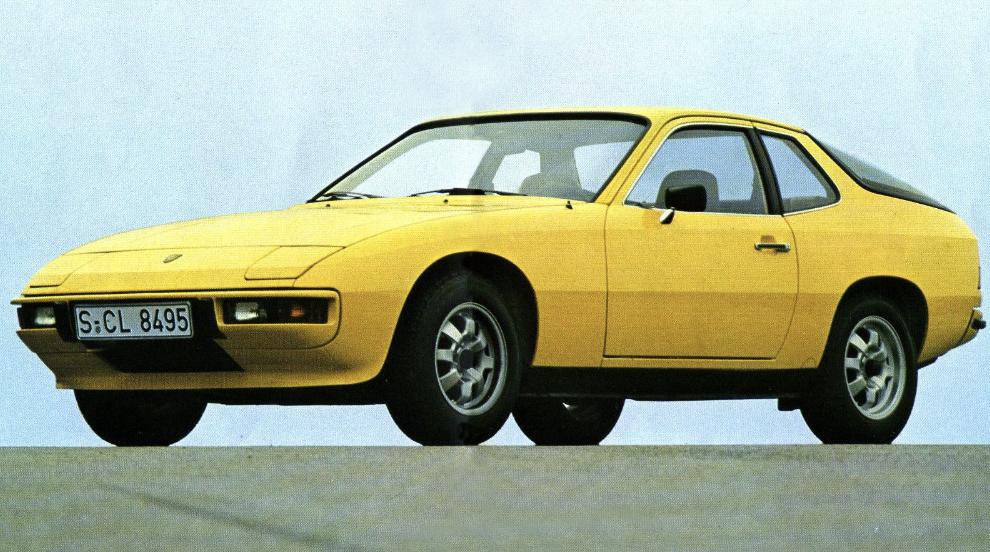

Porsche 924
MODEL YEAR: 1976
Data Quality
C
Contributors
No revisions
Park in your virtuagarage
General
| Complete name of the car | Porsche 924 |
|---|---|
| Model year | 1976 |
| year (from) | 1976 |
| Quality of Data | C - Good |
Specifications
| Body style | Coupé |
|---|---|
| no.Doors | 3 |
| Wheelbase | 2400 mm |
| Lenght | 4171 mm |
| Width | 1656 mm |
| Height | 1260 mm |
| Curb Weight | 1111 kg |
| Wheel Drive | Rear |
| Engine Location | Front |
| Seating capacity (number) | 2+2 |
| Track Tread (front) | 1418 mm |
| Track Tread (rear) | 1372 mm |
| Engine Alignment | Longitudinal |
| Fuel capacity | 62 l |
Engine / Powertrain
| Kind of Engine | Naturally aspirated |
|---|---|
| Cylinders Configuration | Straight/Inline Engine |
| Displacement | 1984 cc |
| Cylinders number | 4 |
| Valve Train | Single overhead camshaft SOHC |
| Bore | 86.5 mm |
| Stroke | 84.4 mm |
| Maximum Power (HP) | 123 hp |
| Power (PS) | 125 PS |
| Power kW | 92 kW |
| Power @ rounds per minute | 5800 rpm |
| Torque | 164 Nm |
| Torque @ r.p.m. | 3500 rpm |
| Compression Ratio | 9.3:1 |
| Fuel | Petrol |
| Coolant | Water |
| Engine Data accuracy | A |
Drivetrain & Suspension
| Suspensions Front | Coil springs, Independent, Lower wishbone, Macpherson strut, Telescopic damper struts |
|---|---|
| Suspensions Rear | Coil springs, Independent, Semi-trailing arm, Telescopic damper struts, Transverse arms |
| Front Brakes | Disc |
| Rear Brakes | Drum |
| Transmission type | 5 speed manual |
| Clutch | Single dry-clutch friction disc |
| Front tyres dimensions | 185/70 HRx14 |
| Rear tyres dimensions | 185/70 HRx14 |
| Fuel capacity | 62 l |
| Steering | Rack and pinion |
Performances
| Top Speed | 204 km/h |
|---|---|
| Acceleration 0-60 mp/h | 9.5 |
| Standing quarter mile | 17.2 s |
