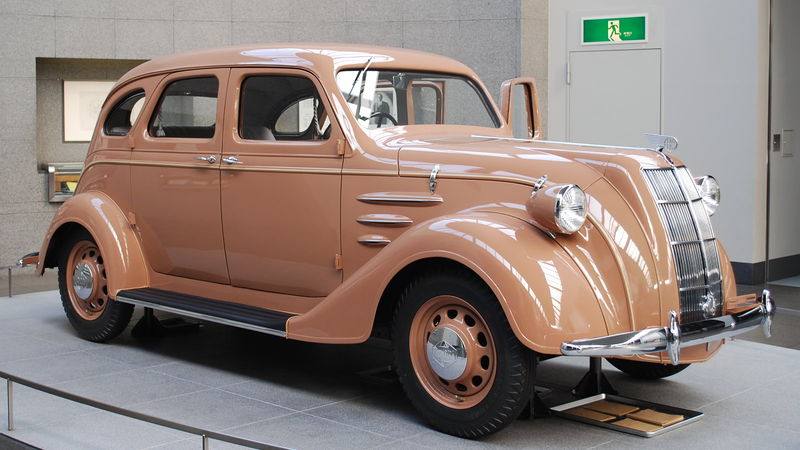

1936 Toyota Model AA (Toyoda)
MODEL YEAR: 1936
Data Quality
D
Contributors
No revisions
Park in your virtuagarage
General
| Complete name of the car | 1936 Toyota Model AA (Toyoda) |
|---|---|
| Model year | 1936 |
| year (from) | 1937 |
| year (to) | 1942 |
| Total production | 1404 |
| Quality of Data | D - Average |
Specifications
| Body style | Sedan |
|---|---|
| no.Doors | 4 |
| Wheelbase | 2850 mm |
| Lenght | 4785 mm |
| Width | 1736 mm |
| Height | 1730 mm |
| Wheel Drive | Missing info |
| Engine Location | Front |
| Seating capacity (number) | 4/5 |
| Engine Alignment | Longitudinal |
Engine / Powertrain
| Kind of Engine | Naturally aspirated |
|---|---|
| Cylinders Configuration | Straight/Inline Engine |
| Displacement | 3389 cc |
| Cylinders number | 6 |
| Valve Train | Single overhead camshaft SOHC |
| Bore | 84.14 mm |
| Stroke | 101.6 mm |
| Maximum Power (HP) | 64 hp |
| Power (PS) | 65 PS |
| Power kW | 48 kW |
| Power @ rounds per minute | 3000 rpm |
| Torque | 190 Nm |
| Torque @ r.p.m. | 1800-2000 rpm |
| Compression Ratio | 5.42:1 |
| Fuel | Petrol |
| Coolant | Water |
Drivetrain & Suspension
| Front Brakes | Drum |
|---|---|
| Rear Brakes | Drum |
| Transmission type | 3 speed automatic |
| Front tyres dimensions | 5.50 x 17 |
| Rear tyres dimensions | 5.50 x 17 |
Cars mounting the same engine (produced by Toyota)
Toyota AA Saloon (1936) Toyota AB Phaeton (1936)Improve these informations
