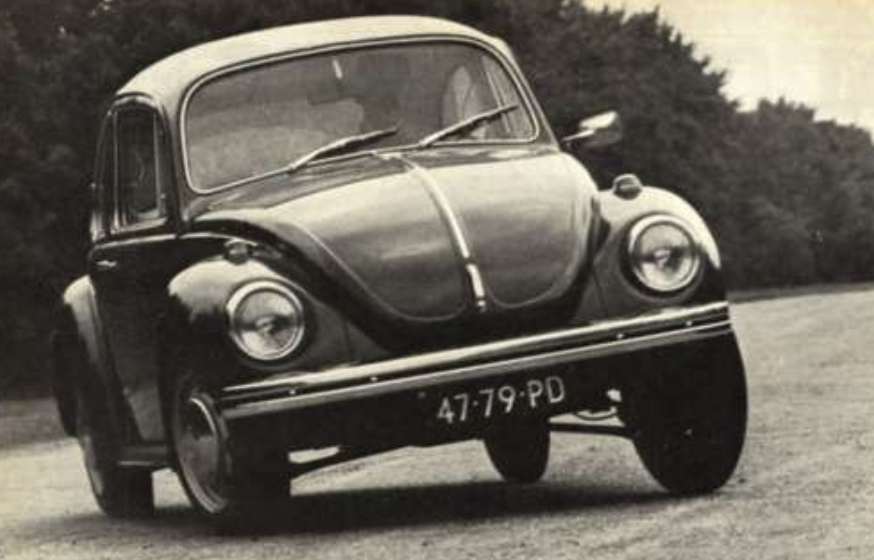

Volkswagen 1302 Beetle (1970)
MODEL YEAR: 1970
Data Quality
D
Contributors
rover
Park in your virtuagarage
General
| Complete name of the car | Volkswagen 1302 Beetle (1970) |
|---|---|
| Model year | 1970 |
| Quality of Data | D - Average |
Specifications
| Body style | Sedan |
|---|---|
| no.Doors | 2 |
| Wheelbase | 2420 mm |
| Lenght | 4080 mm |
| Width | 1585 mm |
| Height | 1500 mm |
| Curb Weight | 870 kg |
| Wheel Drive | Rear |
| Engine Location | Rear |
| Seating capacity (number) | 4/5 |
| Track Tread (front) | 1379 mm |
| Track Tread (rear) | 1352 mm |
| Engine Alignment | Longitudinal |
| Fuel capacity | 40.9 l |
Engine / Powertrain
| Kind of Engine | Naturally aspirated |
|---|---|
| Cylinders Configuration | Boxer/Flat Engine |
| Displacement | 1285 cc |
| Cylinders number | 4 |
| Valve Train | Overhead valves OHV |
| Bore | 77 mm |
| Stroke | 69 mm |
| Maximum Power (HP) | 44 hp |
| Power (PS) | 44.6 PS |
| Power kW | 32.8 kW |
| Power @ rounds per minute | 4100 rpm |
| Torque | 87 Nm |
| Torque @ r.p.m. | 3000 rpm |
| Compression Ratio | 7.5:1 |
| Fuel | Petrol |
| Coolant | Air |
Drivetrain & Suspension
| Suspensions Front | |
|---|---|
| Suspensions Rear | Independent, Macpherson strut with Wishbone |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Transmission type | 4 speed manual |
| Fuel capacity | 40.9 l |
Performances
| Top Speed | 125 km/h |
|---|
