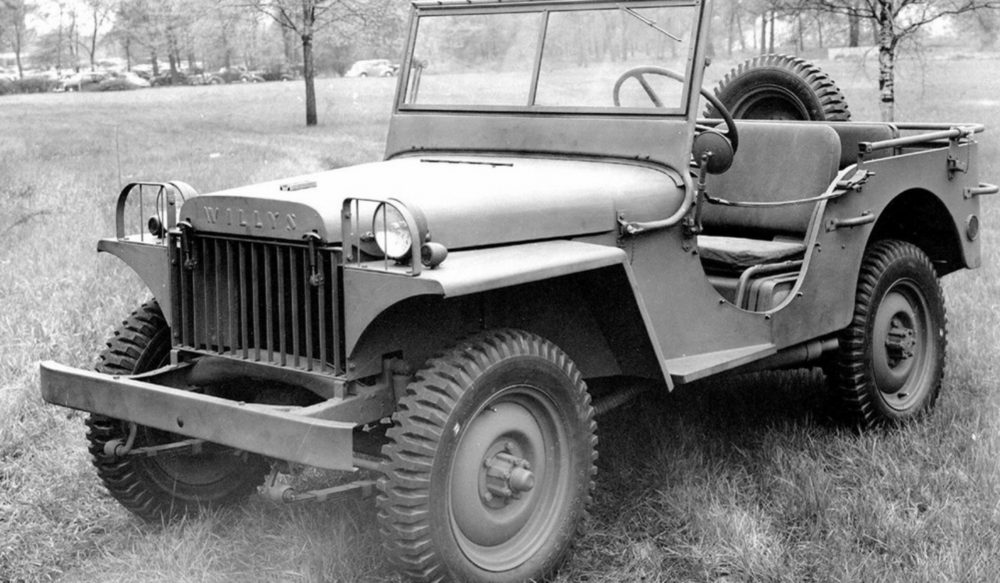

1941 Willys-Overland Jeep MB

MODEL YEAR: 1941

Data Quality

C

Contributors

virtuagarage virtuagarage

Park in your virtuagarage

Add to your virtuagarage
Makes » Willys-Overland » 1941 Willys-Overland Jeep MB

In July 1940, the U.S. government launched a bid aimed at top automotive manufacturers in the Federation. The goal was to design a lightweight, nimble 4x4 off-road vehicle within a very short timeframe. The requirements included:

  • Load capacity of up to 600 pounds (272 kg)
  • Wheelbase under 75 inches (190 cm)
  • Height under 36 inches (91 cm)
  • Speed range from 3 to 50 mph (5 to 80 km/h)
  • Rectangular body design
  • Four-wheel drive with a two-speed transfer case
  • Foldable windshield
  • Seating for three passengers
  • Functional lighting system
  • Gross weight under 1,300 pounds (590 kg)

Only two companies, American-Bantam and Willys-Overland Motor Company, initially responded to the request, despite over 130 manufacturers being contacted. Later, Ford also entered the competition. While none of the prototypes fully met the military's stringent requirements, the Willys-Overland submission emerged as the winner.

With minor adjustments, the Willys Quad was refined into the lighter MA (Military Model A) and, eventually, the final MB version. Structurally, the MB was a simple, small off-road vehicle, essentially a platform frame with a front "box" housing the engine. It featured a 2.2-liter 4-cylinder engine producing just over 50 horsepower, coupled with a four-speed gearbox, a two-position transfer case, and permanent four-wheel drive.

By August 1941, the U.S. Army officially adopted the Willys MB for military operations. Nicknamed the "Jeep" by military personnel, the origin of this name remains debated. Some theories suggest it derived from Oklahoma oil workers' slang, while others link it to Eugene the Jeep, a character from the Popeye comic strip. The most plausible explanation ties the name to the pronunciation of “G” and “P,” military shorthand for "General Purpose."

Before World War II ended, more than 630,000 Jeeps were produced, split between Willys-Overland and Ford under license. In June 1950, Willys-Overland registered "Jeep" as an official trademark. General Dwight D. Eisenhower, Supreme Commander of Allied forces, famously stated that without the Jeep, the Allies could not have won the war.

General

Complete name of the car1941 Willys-Overland Jeep MB
Model year1941
Quality of DataC - Good

Specifications

Body styleOff Road
no.Doors2
Wheelbase2032 mm
Lenght3327 mm
Width1575 mm
Height1829 mm
Curb Weight1113 kg
Wheel Drive4WD
Engine LocationFront
Seating capacity (number)4
Track Tread (front)1226 mm
Track Tread (rear)1226 mm
Engine AlignmentLongitudinal

Engine / Powertrain

Kind of EngineNaturally aspirated
Cylinders ConfigurationStraight/Inline Engine
Displacement2199 cc
Cylinders number4
Bore79.38 mm
Stroke111.13 mm
Maximum Power (HP)54 hp
Power (PS)55 PS
Power kW40 kW
Power @ rounds per minute4000 rpm
Torque129 Nm
Torque @ r.p.m.2000 rpm
Compression Ratio6.48:1
FuelPetrol
CoolantWater

Drivetrain & Suspension

Suspensions FrontHydro Pneumatic Springs, Semi-elliptic leaf springs, Solid Axle
Suspensions RearHydro Pneumatic Springs, Semi-elliptic leaf springs, Solid Axle
Front BrakesDrum
Rear Brakesmechanical band type on rear wheels
Transmission type3 speed manual
Front tyres dimensions6.00-16 6-ply
Rear tyres dimensions6.00-16 6-ply
SteeringWorm and sector
