Generation

Opel Meriva B

Generation of Opel Meriva

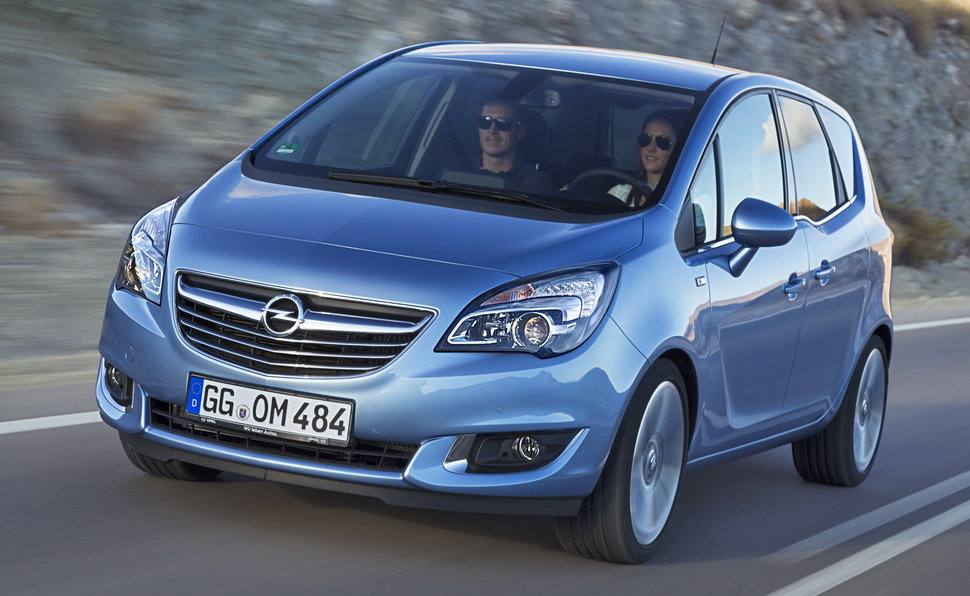

Photo of Opel Meriva
Main article

Opel Meriva

  1. Opel Meriva A
    2003 > 2006 GEN
  2. Opel Meriva A Update
    2006 > 2010 MOY
  3. Opel Meriva B
    2010 > 2017 GEN
  4. 2017
    End of production

Trim Levels/Versions

6
Year Model Name Fuel Body WheelDrive Pr.From to Speed QOD
Year Model Name Fuel Body WheelDrive Pr.From to Speed QOD
2010 2010 Opel Meriva 1.3 CDTI Diesel Multi Purpose Vehicle 0 0 -
E
2010 2010 Opel Meriva 1.3 CDTI ecoFLEX Diesel Multi Purpose Vehicle 0 0 -
E
2010 2010 Opel Meriva 1.4 Petrol Multi Purpose Vehicle 0 0 -
E
2010 2010 Opel Meriva 1.4 Turbo Petrol Multi Purpose Vehicle 0 0 -
E
2010 2010 Opel Meriva 1.4 Turbo ecoFLEX Petrol Multi Purpose Vehicle 0 0 -
E
2010 2010 Opel Meriva 1.7 CDTI Diesel Multi Purpose Vehicle 0 0 -
E

Engines

6
» Diesel Engines
Id.Engine1248 cc1248 cc1686 cc
Kind of EngineTurbochargedTurbochargedTurbocharged
Identificative engine169 a 1000 199 b 1000
Cylinders ConfigurationStraight/Inline EngineStraight/Inline EngineStraight/Inline Engine
Displacement1248 cc1248 cc1686 cc
Cylinders number4 4 4
FuelDieselDieselDiesel
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque190 N-m200 N-m300 N-m
Torque @ r.p.m. 1500 rpm 1500 rpm 2000-2500 rpm
Cylinders angle
Maximum Power (HP)74 hp94 hp128.5 hp
Power (PS)75 ps95 ps130 ps
Power kW55 kW70 kW96 kW
Power @ rounds per minute4000 rpm4000 rpm4000 rpm
Bore69.6 mm69.6 mm79 mm
Stroke82 mm82 mm86 mm
Valve TrainDouble overhead camshaft DOHCDouble overhead camshaft DOHCDouble overhead camshaft DOHC
Compression Ratio16.8:1 16.8:1 16.5:1
Engine block material
Cylinder head material
Fuel Systemcommon rail direct diesel injectrioncommon rail direct diesel injectrioncommon rail direct diesel injectrion
CoolantWaterWaterWater
Engine Data accuracy
D
Meriva 1.3 CDTI 1
Meriva 1.3 CDTI ecoFLEX 1
Meriva 1.7 CDTI 1
» Petrol Engines
Id.Engine1398 cc1398 cc1398 cc
Kind of EngineNaturally aspiratedTurbochargedTurbocharged
Identificative engine
Cylinders ConfigurationStraight/Inline EngineStraight/Inline EngineStraight/Inline Engine
Displacement1398 cc1398 cc1398 cc
Cylinders number4 4 4
FuelPetrolPetrolPetrol
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque130 N-m175 N-m200 N-m
Torque @ r.p.m. 4000 rpm 1750-4800 rpm 1850-4900 rpm
Cylinders angle
Maximum Power (HP)99 hp118 hp138 hp
Power (PS)100 ps120 ps140 ps
Power kW74 kW88 kW103 kW
Power @ rounds per minute6000 rpm4800-6000 rpm4900-6000 rpm
Bore73.4 mm73.4 mm73.4 mm
Stroke82.6 mm82.6 mm82.6 mm
Valve TrainDouble overhead camshaft DOHCDouble overhead camshaft DOHCDouble overhead camshaft DOHC
Compression Ratio10.5:1 9.5:1 9.5:1
Engine block material
Cylinder head material
Fuel Systemefiefiefi
CoolantWaterWaterWater
Engine Data accuracy
Meriva 1.4 1
Meriva 1.4 Turbo ecoFLEX 1
Meriva 1.4 Turbo 1

Car body variants

1 MPV
Variants #MPV
Body styleMulti Purpose Vehicle
no.Doors
Wheelbase2644 mm
Lenght4288 mm
Width1812 mm
Height1615 mm
Curb Weight
Wheel Drive
Engine LocationFront
Chassis
Seating capacity (number)
Track Tread (front)1488 mm
Track Tread (rear)1509 mm
Luggage capacity (min)
Luggage capacity (max)
Weight distribution (FRONT)
Engine AlignmentTransverse
Drag Coefficient
Equipment
Meriva 1.3 CDTI
Meriva 1.3 CDTI ecoFLEX
Meriva 1.4
Meriva 1.4 Turbo
Meriva 1.4 Turbo ecoFLEX
Meriva 1.7 CDTI

Linked Cars

Related people

Market Sales

Market Sales info not avaiable.

edit Flag

Assembly site(s)

Sales figures

No sales informations avaiable
