1986 > 1990
Mid Generational Restyling, Model year

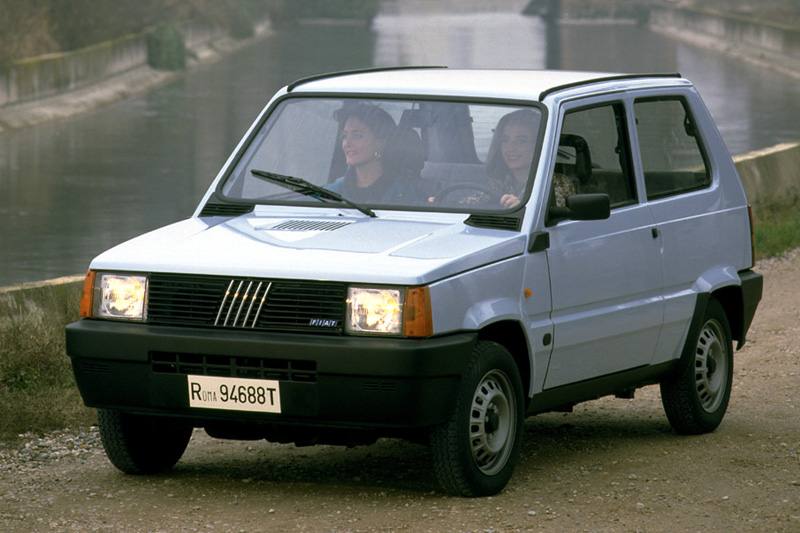

Fiat Panda (tipo 141) Facelift I
Restyling of

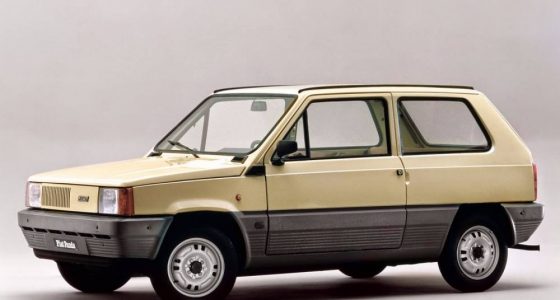

Fiat Panda (tipo 141)
1986 > 1990
| Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
|---|---|---|---|---|---|---|---|---|---|
| Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
| 1985 | Fiat Panda 1.0 (1985) | Petrol | Hatchback | FWD | 0 | 0 | - |
|
|
| 1986 | 1986 Fiat Panda 1300D | Diesel | Hatchback | FWD | 0 | 0 | 130 km/h |
|
|
| 1989 | Fiat Panda 750 L (1989) | Petrol | Hatchback | FWD | 0 | 0 | 125 km/h |
D
|
|
| 1980 | 1980 Fiat Panda 750 | Petrol | Hatchback | FWD | 0 | 0 | 125 km/h |
|
|
| 1992 | Fiat Panda 900 ie | Petrol | Hatchback | FWD | 1992 | 2000 | 135 km/h |
|
|
| 1989 | Fiat Panda 750 CL Europa (1989) | Petrol | Hatchback | FWD | 0 | 0 | 125 km/h |
D
|
|
| 1986 | 1986 Fiat Panda 4x4 | Petrol | Hatchback | FAW | 0 | 0 | 135 km/h |
|
|
| 1988 | Fiat Panda 750 Young | Petrol | Hatchback | FWD | 0 | 0 | 125 km/h |
C
|
| Id.Engine | 1302 cc |
|---|---|
| Kind of Engine | Naturally aspirated |
| Identificative engine | |
| Cylinders Configuration | Straight/Inline Engine |
| Displacement | 1302 cc |
| Cylinders number | 4 |
| Fuel | Diesel |
| Electric engine - kind | |
| Battery kind | |
| Peak Power (hp) | |
| Peak Power (kW) | |
| Battery power | |
| Operating Voltage | |
| Battery: Operating Temperature | |
| Battery: System Voltage | |
| Battery: Cell Configuration | |
| Battery: 0-80% Charge time | |
| Torque | 71 N-m |
| Torque @ r.p.m. | 2500 rpm |
| Cylinders angle | |
| Maximum Power (HP) | 36 hp |
| Power (PS) | 36.5 ps |
| Power kW | 26.8 kW |
| Power @ rounds per minute | 4000 rpm |
| Bore | 76.1 mm |
| Stroke | 71.5 mm |
| Valve Train | Single overhead camshaft SOHC |
| Compression Ratio | 20:1 |
| Engine block material | |
| Cylinder head material | |
| Fuel System | bosch diesel pump |
| Coolant | Water |
| Engine Data accuracy | |
|
Panda 1300D
1
|
| Id.Engine | 769 cc | 899 cc | 999 cc | 999 cc |
|---|---|---|---|---|
| Kind of Engine | Naturally aspirated | Naturally aspirated | ||
| Identificative engine | 156 a4.000 | 156 a3.000 | ||
| Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine |
| Displacement | 769 cc | 899 cc | 999 cc | 999 cc |
| Cylinders number | 4 | 4 | 4 | 4 |
| Fuel | Petrol | Petrol | Petrol | Petrol |
| Electric engine - kind | ||||
| Battery kind | ||||
| Peak Power (hp) | ||||
| Peak Power (kW) | ||||
| Battery power | ||||
| Operating Voltage | ||||
| Battery: Operating Temperature | ||||
| Battery: System Voltage | ||||
| Battery: Cell Configuration | ||||
| Battery: 0-80% Charge time | ||||
| Torque | 54 N-m | 66 N-m | 78 N-m | |
| Torque @ r.p.m. | 3000 rpm | 3000 rpm | 3000 rpm | 3000 rpm |
| Cylinders angle | ||||
| Maximum Power (HP) | 33.5 hp | 49 hp | ||
| Power (PS) | 34 ps | 39 ps | 45 ps | 49.7 ps |
| Power kW | 25 kW | 36.5 kW | ||
| Power @ rounds per minute | 5250 rpm | 5500 rpm | 5500 rpm | 5500 rpm |
| Bore | 65 mm | 65 mm | 70 mm | 70 mm |
| Stroke | 58 mm | 68 mm | 65 mm | 64.9 mm |
| Valve Train | Single overhead camshaft SOHC | Overhead valves OHV | ||
| Compression Ratio | 9.4:1 | 10 | 9.8:1 | |
| Engine block material | Cast Iron | |||
| Cylinder head material | Light alloy | |||
| Fuel System | 1 carburettor | 1 weber 32 tlf 8/250 carburettor | ||
| Coolant | Water | Water | ||
| Engine Data accuracy |
B
| |||
|
Panda 750 L
5
Panda 750 1 Panda 750 CL Europa 5 Panda 750 Young 1 |
Panda 900 ie
1
|
Panda 1.0
0
|
Panda 4x4
1
|
| Variants | #HAT | #HAT |
|---|---|---|
| Body style | Hatchback | Hatchback |
| no.Doors | ||
| Wheelbase | 2159 mm | 2170 mm |
| Lenght | 3408 mm | 3410 mm |
| Width | 1494 mm | 1500 mm |
| Height | 1420 mm | 1470 mm |
| Curb Weight | ||
| Wheel Drive | ||
| Engine Location | Front | Front |
| Chassis | ||
| Seating capacity (number) | ||
| Track Tread (front) | 1260 mm | 1280 mm |
| Track Tread (rear) | 1265 mm | 1285 mm |
| Luggage capacity (min) | 272 litres | 272 litres |
| Luggage capacity (max) | 1088 litres | 1088 litres |
| Weight distribution (FRONT) | ||
| Engine Alignment | Transverse | Transverse |
| Drag Coefficient | ||
| Equipment | ||
|
Panda 1.0
Panda 1300D Panda 750 L Panda 750 Panda 900 ie Panda 750 CL Europa Panda 750 Young |
Panda 4x4
|
